When using a digital riflescope with an integrated laser rangefinder (LRF), the ranging point and the aiming point may not coincide. This can require hunters to adjust their aim after measuring distance, adding an extra step when tracking a target.
NITE PRO addresses this challenge with Target Sync, a user-calibrated LRF optical-axis alignment system designed to align the laser ranging point with the reticle. By bringing these two reference points together, Target Sync simplifies the transition from ranging to aiming and helps hunters maintain a more consistent view of the target.
Target Sync: When Ranging and Aiming Align

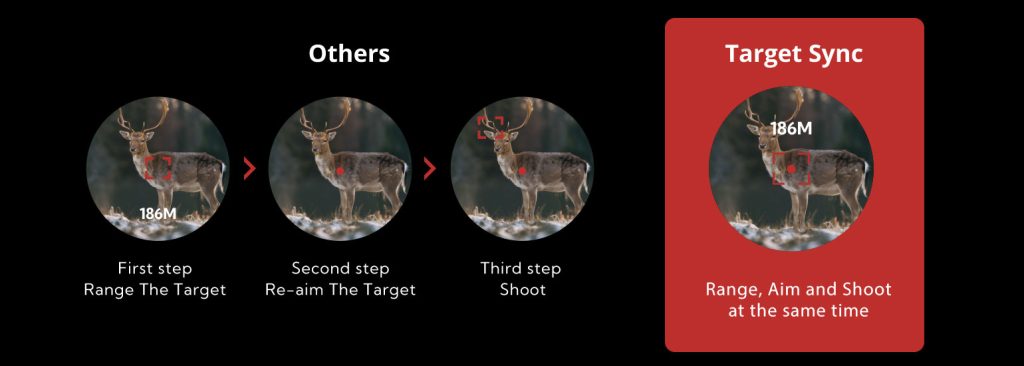

In conventional digital riflescopes with integrated laser rangefinders, the ranging point may sit slightly away from the reticle, often above or to the left. When the two points are offset, users may need to measure the distance first and then reposition the riflescope to bring the reticle back onto the target.
This extra adjustment can interrupt the viewing process and make it harder to maintain visual continuity, particularly when observing moving animals.
NITE PRO Target Sync is designed to address this through an LRF optical-axis alignment system. After proper calibration, the laser ranging point aligns with the center of the reticle, bringing the ranging reference and aiming reference into alignment.
Instead of treating ranging and aiming as two separate steps, hunters can use a more direct workflow while keeping their attention on the target. Target Sync makes this process more intuitive by reducing the need to reposition the riflescope between distance measurement and aiming.
Why Target Sync Matters in the Field
The value of Target Sync becomes particularly apparent when observing animals in changing terrain or fading light. Whether scanning the edge of woodland at dusk or observing an animal across an open field, maintaining a consistent view can make the ranging process more straightforward.
With a conventional offset between the LRF ranging point and the reticle, measuring distance may require an additional adjustment before the user can resume aiming. Target Sync helps reduce this interruption by aligning the ranging point with the reticle.
This alignment supports a more consistent viewing workflow, helping users spend less time making separate adjustments and more time observing the target.
The benefit is not simply faster ranging. It is a more intuitive relationship between the rangefinder and the aiming reference, integrated into one digital riflescope system.
How to Calibrate Target Sync
Target Sync is designed to be calibrated by the user rather than relying solely on a factory setting. Proper calibration aligns the LRF ranging point with the reticle to support consistent operation.
Follow the official NITE PRO instructions when performing this procedure. The general adjustment process is as follows:
- Zero the riflescope first. Complete the zeroing procedure before adjusting the LRF alignment to establish the correct reticle position.
- Locate the ranging point. At the appropriate distance and under the conditions specified in the user manual, activate the required night-viewing mode and continuous ranging function to identify the LRF laser spot on the display.
- Adjust the laser emitter. If user adjustment is supported for your model, follow the official instructions for accessing the adjustment mechanism and carefully moving the laser spot toward the center of the reticle using the supplied tool.
- Secure the adjustment and align the display reference. Tighten the adjustment screw as directed, replace the cover, and use the “Rangefinding reticle adjustment” menu to align the displayed LRF reticle with the ranging point, if required by the manual.
- Confirm the alignment. Verify the result according to the official calibration procedure before using Target Sync in the field. Once alignment is confirmed, follow the manual’s instructions for hiding the LRF reticle if that option is supported and appropriate for your setup.
Calibration should be performed under the conditions and with the equipment specified by Nocpix. Do not adjust the hardware beyond the procedures authorized in the product manual.
Once properly calibrated, Target Sync is designed to maintain the alignment during normal use. Refer to the official documentation for model-specific maintenance and verification requirements.
Beyond Target Sync: 1200m LRF and Ballistic Calculation
Target Sync is part of a broader set of ranging and aiming features in NITE PRO. The digital riflescope also incorporates a laser rangefinder with a range of up to 1,200 meters and a built-in ballistic calculator.
The LRF provides distance measurements, while the ballistic calculator uses the configured ammunition profile and distance data to generate aiming references. These functions help users access relevant ranging and ballistic information within the riflescope system.
Together, Target Sync, the integrated LRF, and ballistic calculation bring distance measurement and aiming references into a more coordinated workflow. Actual ballistic results depend on the accuracy of the configured inputs and the conditions of use.
A More Connected Ranging and Aiming Experience
Image quality helps users see more clearly, but an effective digital riflescope also needs to make its information practical to use. Target Sync addresses one specific challenge by aligning the LRF ranging point with the reticle, reducing the need for separate adjustments between ranging and aiming.
Combined with NITE PRO’s laser rangefinder and built-in ballistic calculator, Target Sync creates a more integrated approach to distance measurement and aiming references. It is a practical example of how thoughtful optical alignment and system integration can make a digital riflescope experience more intuitive in the field.
