Nocpix ACE RM: S60R & H50R Rail Mount Thermal Riflescope

ACE RM

ACE RM

Rule the Night,Tame the Wild

S60R H50R

Introducing the ACE series, the flagship thermal riflescope designed for all hunting environments. It features a self-developed high-resolution thermal sensor, integrated LRF, and advanced Reality+ and Vision+ systems. Deliver unparalleled image quality and superior performance.

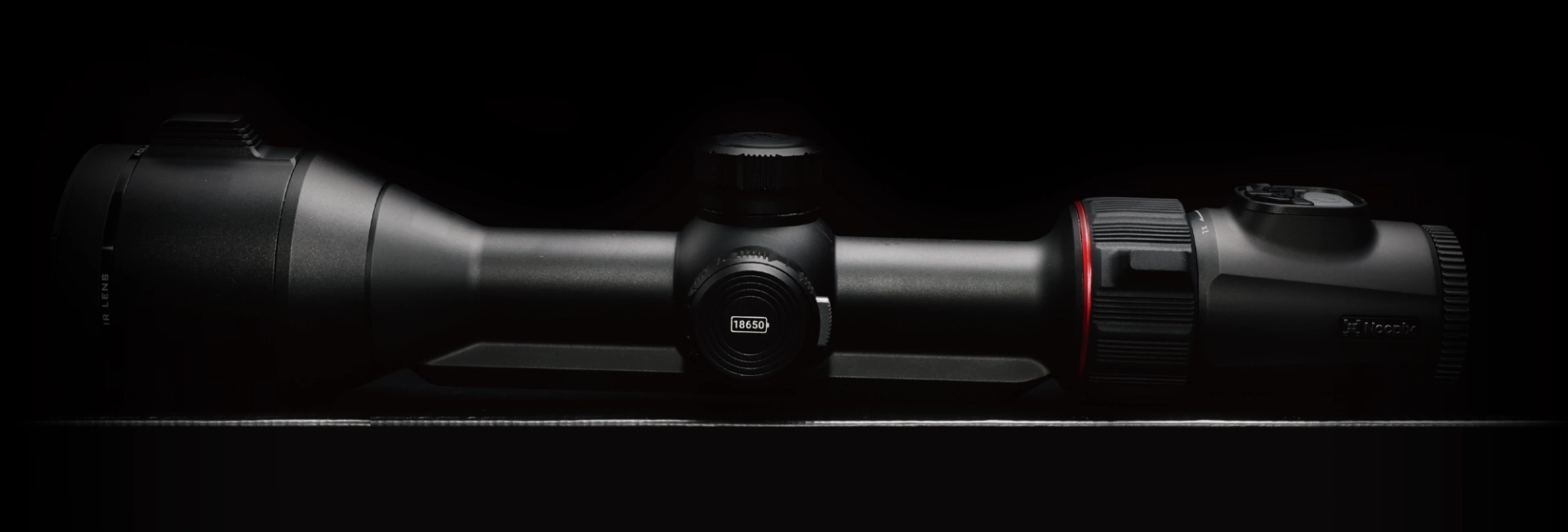

Rail Mount - Stable. Aligned. Adjustable.
1200m Periscope-type LRF
F0.9/F1.0 Lens
1280/640@12μm NETD≤15mK
Ocular Zoom
Vision + System

Superior Robustness & Reliability

Engineered to outperform traditional 30mm ring mounts, the ACE Rail Mount offers exceptional structural integrity. Its advanced design eliminates the risk of scope movement or tube deformation, ensuring long-term stability even under extreme field conditions.

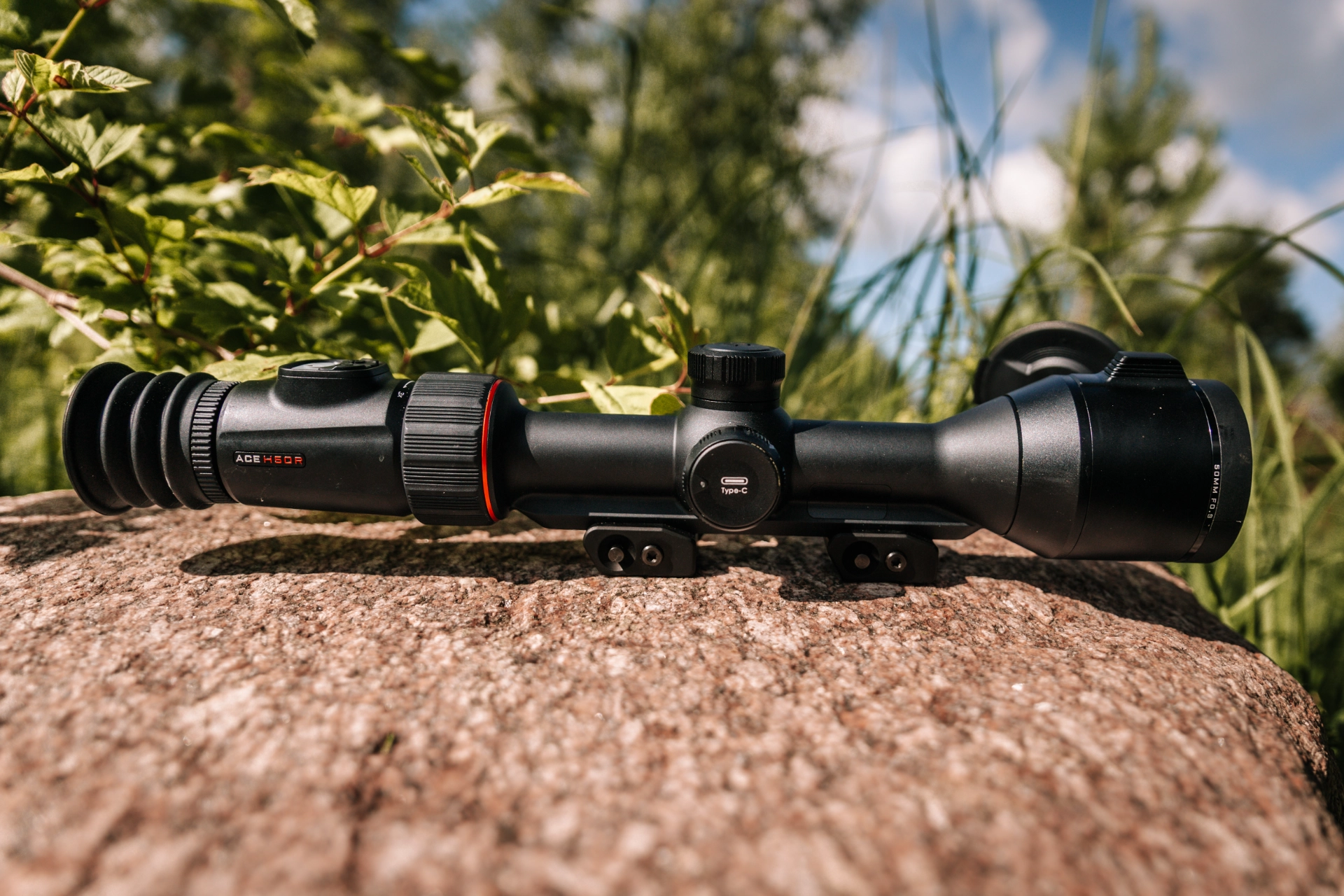

Close-up of ACE H50R thermal scope mounted on a hunting rifle, showing Type-C port and mounting system.

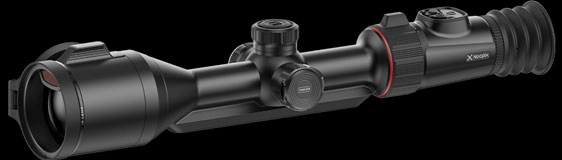

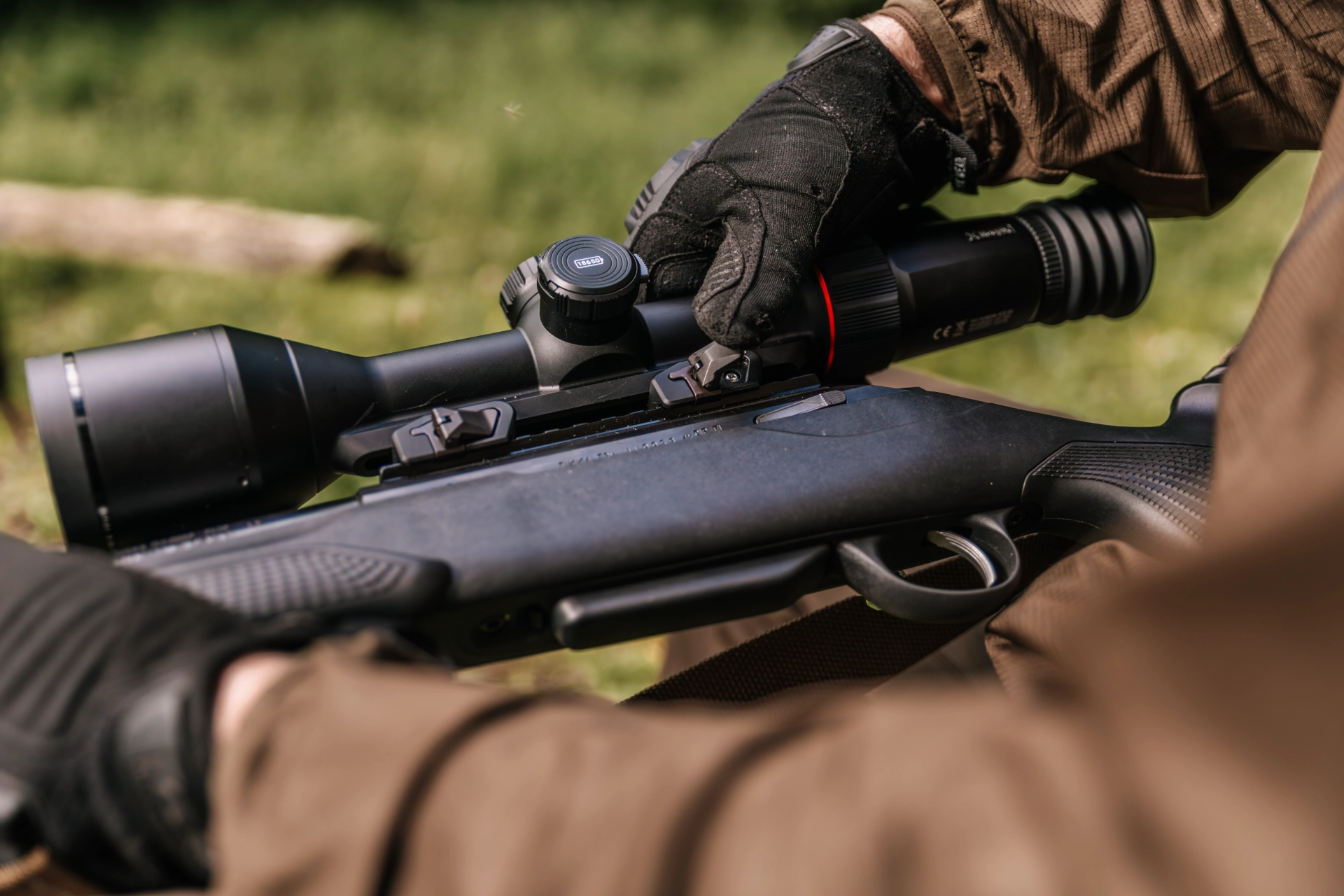

Effortless Horizontal Leveling

With the ACE Rail Mount, achieving perfect scope alignment is no longer a challenge. The rail-based system inherently ensures precise horizontal leveling, removing the need for constant adjustments and enabling faster, more accurate setup.

Enhanced Eye Relief Flexibility

Designed with extended forward-backward adjustability, the ACE Rail Mount makes it significantly easier to achieve the ideal eye relief. Whether for fast target acquisition or long hunting sessions, users can quickly find their optimal viewing position with minimal effort.

Close-up of a rifle scope mount being adjusted on a Picatinny rail with directional arrows indicating positioning.

Advanced Sensor Ensures Excellence

Featuring our self-developed thermal sensor with a resolution of up to 1280×1024, the ACE Rail Mount stable performance with an NETD of less than 15mK.

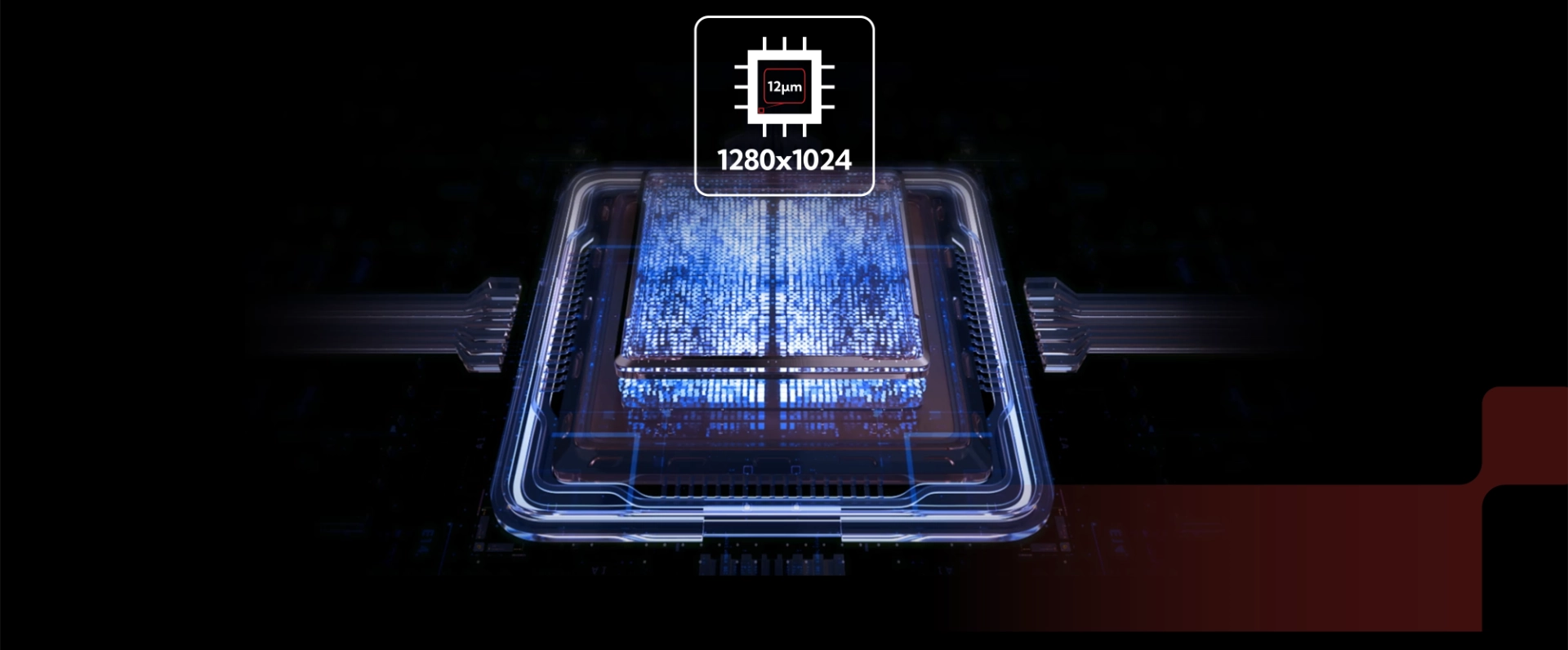

Graphic of a thermal imaging sensor chip with 1280×1024 resolution and 12 µm pixel size used in a high-performance thermal scope.

Agile and Precise Built-in LRF

The ACE Rail Mount equipped with an integrated LRF, offering laser range-finding up to 1200 meters with true optical axis alignment, ensuring precise distance measurements while maintaining a sleek and elegant design.

Hunter aiming a rifle equipped with a Nocpix ACE thermal scope featuring an integrated 1200 m laser rangefinder (LRF).

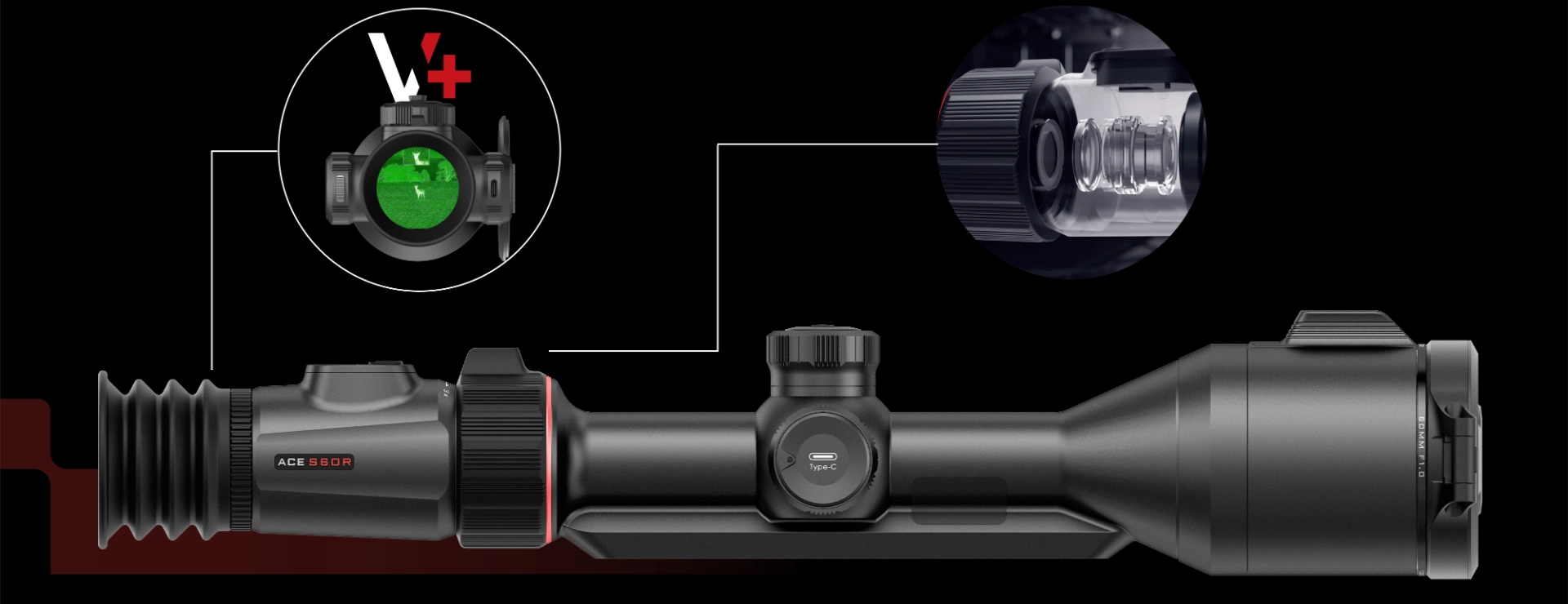

New Vision+ System with Ocular Zoom

The new Vision+ system features a 1.03-inch round 2560×2560 AMOLED screen and industry-leading ocular zoom for direct optical magnification. Unlike traditional e-zoom, it prevents blurring and distortion in close-up views. Enjoy high-resolution images and a broader field of view for an immersive and comfortable observation experience.

Long-Distance Detection at Ease

The ACE Rail Mount boasts an impressive detection range of up to 3100 meters. This capability allows clear identification of distant targets, providing a significant advantage for long-range hunting.

Hunter aiming a rifle with a thermal scope in a field, highlighting a 3100 m detection range capability.

Exceptional Clarity with Larger Lens

The ACE Rail Mount feature 60mm/F1.0 or 50mm/F0.9 lenses. The larger objective lens allows 20% more light to reach the sensor. Coupled with high-transmittance lens elements, it generates brighter and clearer images.

Nocpix ACE thermal rifle scope showing the large objective lens and fast F0.9 aperture compared with F1.0.

Reality+ Imaging Enhancement

Our proprietary Reality+ image processing algorithm effectively eliminates environmental temperature noise, enhancing contrast and detail clarity.

Eliminate Battery Capacity Concerns

The ACE employs a dual-battery system with a 4000mAh built-in battery and an additional replaceable 18650 battery. This setup meets the demands of prolonged outdoor hunting sessions.

Hunter adjusting the elevation turret on a Nocpix ACE thermal rifle scope mounted on a bolt-action hunting rifle.

Gallery

Parameters

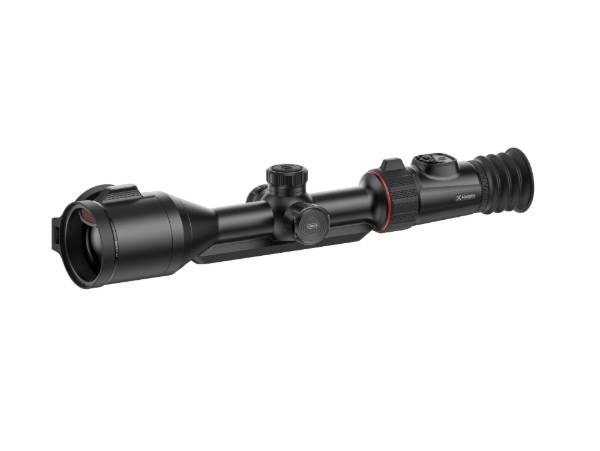

ACE S60R

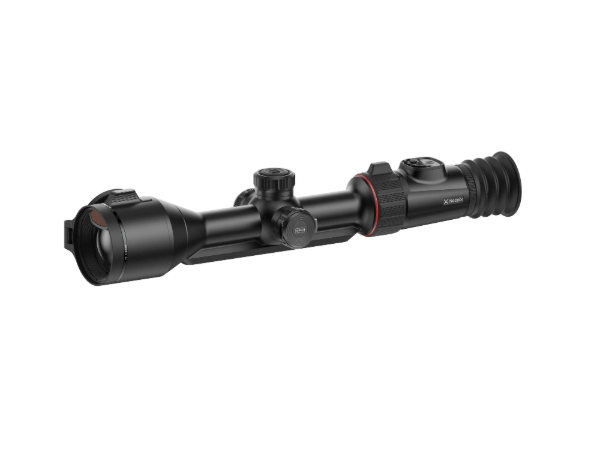

ACE H50R

ACE S60R Thermal sensor 1280x1024 & 12μm NETD, mK ≤ 15 Frame rate, Hz 50 Objective lens, mm 60 F1.0 Field of view(H×V), °/m@100m 14.7x11.7 /26×21 Magnification, × 2~24
ACE H50R Thermal sensor 640×512 & 12μm NETD, mK ≤ 15 Frame rate, Hz 60 Objective lens, mm 50 F0.9 Field of view(H×V), °/m@100m 8.8x7.0 /15×12 Magnification, × 3~24
